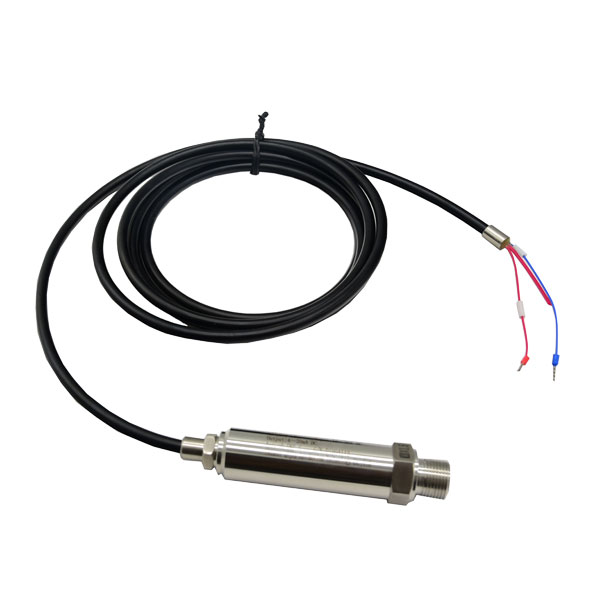

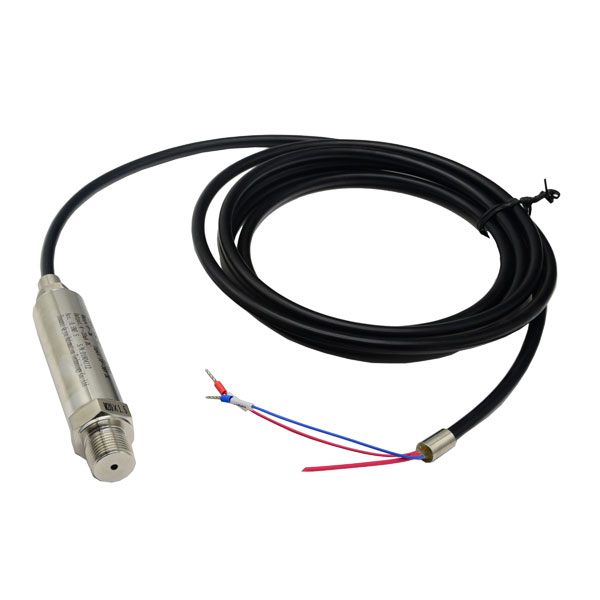

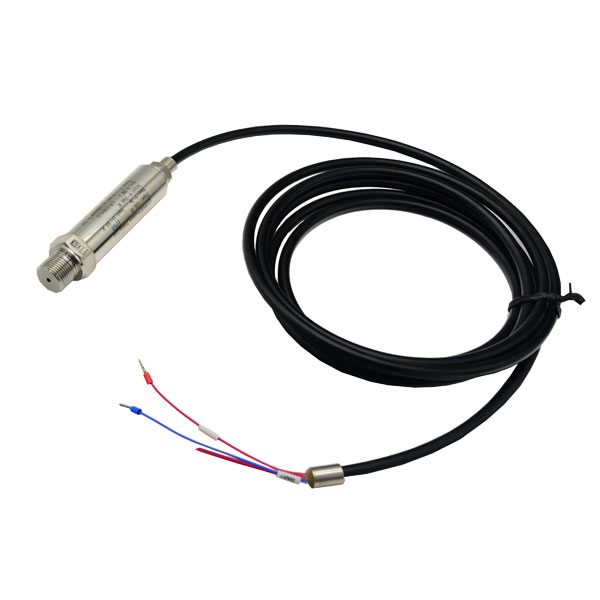

| Model | CAL-D |
| Measure Range | 0-0.5~200m H2O |
| Accuracy | 0.5% , 0.3%, 0.1% Optional |
| Power Supply | 12~36VDC,(standard 24VDC) |
| Output | 4~20mA,0~5V,1~5V,0~10V |
| Medium Temperature | -20~85℃ |
| Working Temperature | 0~65℃ |
| Compensation Temperature | 0~10mH2O:0~60℃; 10~200mH2O:-10~70℃ |
| Response Time | ≤1ms(up to 90%FS) |
| Zero Drift | ±1.5%FS(within temperature compensation range) |
| Sensitivity Drift | ±1.5%FS(within temperature compensation range) |
| Overload Pressure | 150%FS |
| Insulation Resistance | 20MΩ/250VDC |
| Long-term Stability | ±0.2FS/Year |
| Material | Junction box: Low content Cu-Al alloy Probe: Stainless steel Cable: Polyurethane cable |
| Medium | Various medium which is compatible with SS304 |
| Ingress Protection | IP68 |
| Application | Static liquid level, liquid tank, sewage water, Well, Lake,etc. |
