CAL-HSGWXS Submersible Tank Water Level Sensor has the pressure sensitive element is made of Silicon piezoresistive type oil filled pressure core, the internal exclusive integrated circuit convert the mV signal to standard current signal which can be remote transmission. It can connect with computer, control instrument, smart instrumen
Specifications:

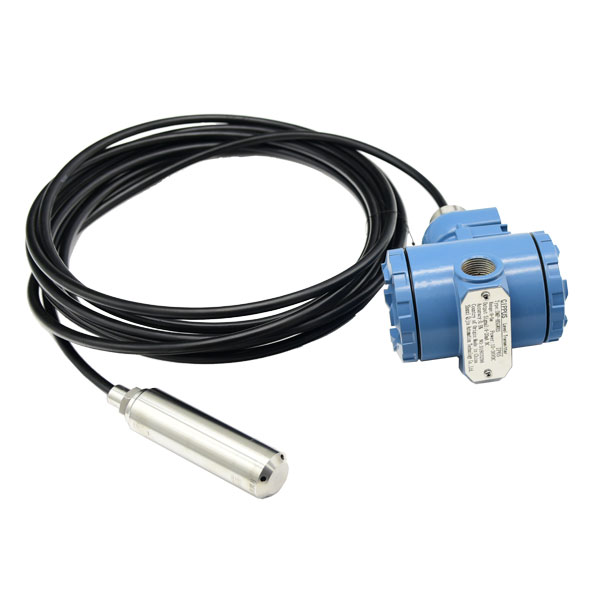

Product Pictures:
Model
CAL-HSGWXS
Measure Range
0-0.5~200m H2O
Accuracy
0.5% , 0.3%, 0.1% Optional
Power Supply
12~36VDC,(standard 24VDC)
Output
4~20mA,0~5V,1~5V,0~10V
Medium Temperature
-20~85℃
Working Temperature
0~~65℃
Compensation Temperature
0~10mH2O:0~60℃; 10~200mH2O:-10~70℃
Response Time
≤1ms(up to 90%FS)
Zero Drift
±1.5%FS(within temperature compensation range)
Sensitivity Drift
±1.5%FS(within temperature compensation range)
Overload Pressure
150%FS
Insulation Resistance
20MΩ/250VDC
Long-term Stability
±0.2FS/Year
Material
Junction box: Low content Cu-Al alloy
Probe: Stainless steel
Cable: Polyurethane cable
Medium
various medium which is compatible with SS304
Ingress Protection
IP68
Application
Static liquid level, liquid tank, sewage water, Well, Lake,etc.
