Pressure Range |
-0.1～0-0.02～100MPa |
|
Medium |
Water, Gas, Oil Purity Medium |
|
Accuracy |
0.1、0.25、0.5% F.S optional |
|
Pressure Type |
Gauge (G), Absolute (A), Sealed Gauge (S) |
|
Output |
4～20mA、0～5VDC、1～5VDC、0～10VDC、HART optional |
|
Power Supply |
12～36VDC |
|
Overload Capacity |
150%F.S |
|
Compensated Temperature |
-10-70℃ |
|
Operating Temperature |
-20-65℃ (higher temperature can chose CAP-GW) |
|
Zero Temp. Drift |
±0.03%FS/℃ |
|
Sensitivity Temp. Drift |
±0.03%FS/℃ |
|
Long Term Stability |
≤0.2%FS/year |
|
Response Speed |
≤1ms(up to 90%FS) |
|
Process Connection |
M20×1.5, 1/4NPT, G1/2, G1/4 or Customized |
|
Ingress Protection |
IP65 |
|

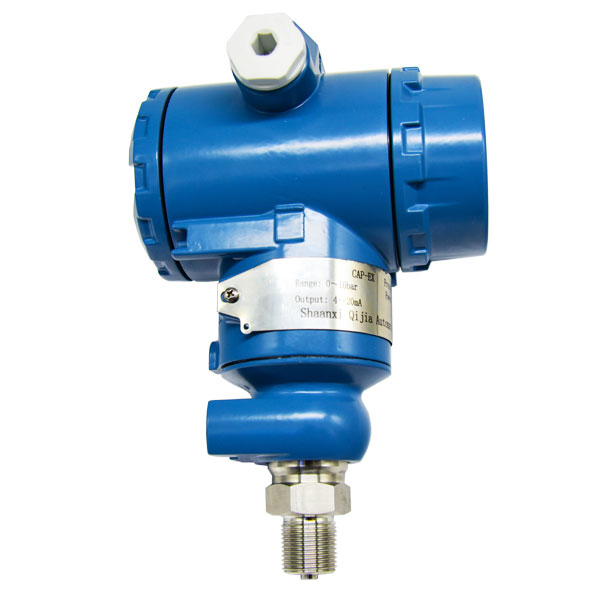

CAP -EX-ð-ð-ð-ð-ð-ð-ð-ð |
Code | |||||||
|
Range |
-0.1～0-0.02～100MPa |
R | ||||||
|
Type |
Gauge (G) |
G | ||||||
|
Absolute (A) |
A | |||||||
|
Sealed gauge (S) |
S | |||||||
|
Output |
4~20mA |
V1 | ||||||
|
0~5V DC |
V2 | |||||||
|
1~5V DC |
V3 | |||||||
|
Hart, RS485,RS232（optional） |
V4 | |||||||
|
Connection |
M20×1.5 |
B1 | ||||||
|
1/4NPT |
B2 | |||||||
|
G1/2 |
B3 | |||||||
|
G1/4 |
B4 | |||||||
|
Customized |
B5 | |||||||
|
Accuracy |
0.5%FS |
C1 | ||||||
|
0.25%FS |
C2 | |||||||
|
0.1%FS |
C3 | |||||||
|
Material |
304SS |
M1 | ||||||
|
316LSS |
M2 | |||||||
|
Ex-proof |
No explosion-proof |
0 | ||||||
|
Ex | ||||||||
