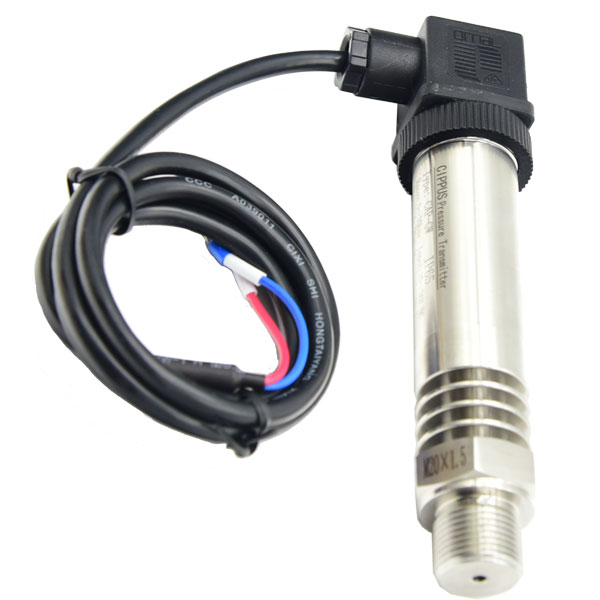

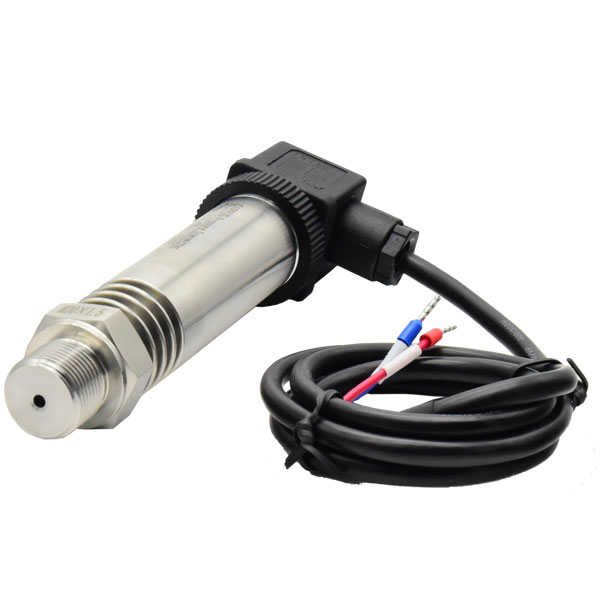

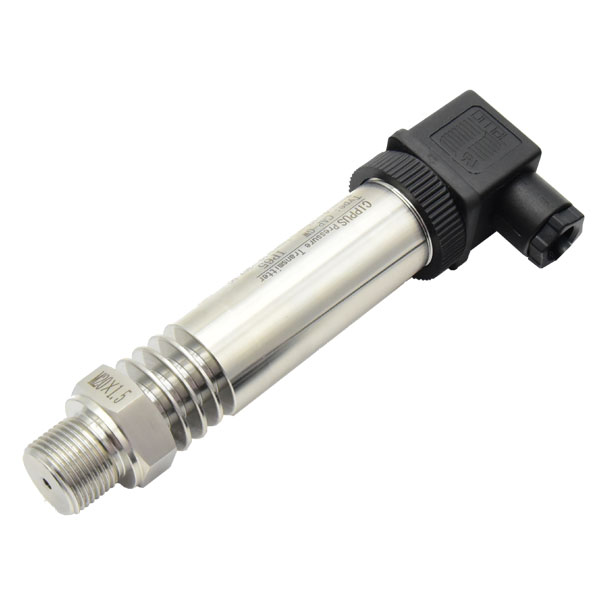

Top Grade Pressure Core High Protective Seal Shell Wide Voltage Supply Withstand Voltage Shock As High as 2 Times Instantaneous.
| Pressure Range | -0.1～0-0.02～100MPa |
| Medium | Gas, liquid purity medium |
| Power Supply | 12～36VDC |
| Output | 4～20mA、0～5VDC、1～5VDC、0～10VDC optional |
| Accuracy | 0.1、0.25、0.5% F.S optional |
| Pressure Type | Gauge (G), absolute (A), sealed gauge (S) |
| Pressure Connector | M20×1.5、G1/2、G1/4、NPT1/2 or Customized |
| Ingress Protection | IP65 |
| Overload Capacity | 150%F.S |
| Compensated Temperature | -10-70℃ |
| Operating Temperature | -20-65℃ (higher temperature can chose CAP-GW) |
| ZeroTemp. Drift | ±0.03%FS/℃ |
| SensitivityTemp. Drift | ±0.03%FS/℃ |
| Long Term Stability | ≤0.2%FS/year |
| Response Speed | ≤1ms(up to 90%FS) |
| Recommendation | Indoor use, rainproof, generally applicable to the equipment supporting pipeline pressure measurement. |
