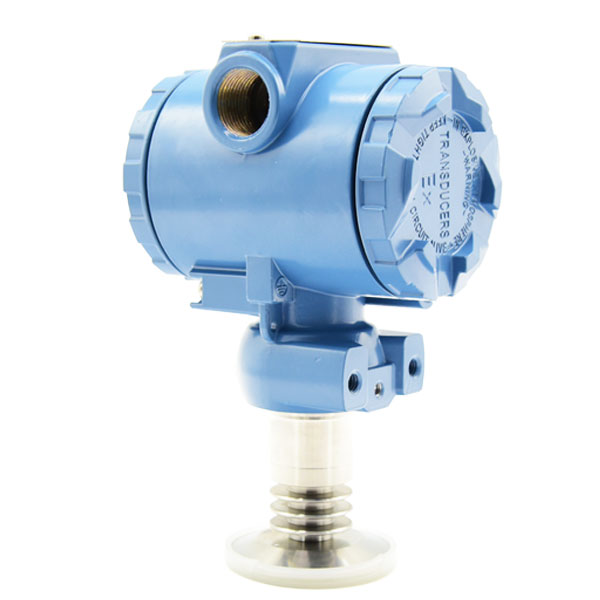

Top Grade Pressure Core High Protective Seal Shell Wide Voltage Supply Withstand Voltage Shock As High as 2 Times Instantaneous.
| Pressure Range | -0.10…0…6MPa |
| Display | LCD/LED |
| Medium | Water,Gas,Oil Purity Medium |
| Accuracy | 0.1,0.25,0.5% F.S optional |
| Pressure Type | Gauge (G), absolute (A), sealed gauge (S) |
| Output | 4～20mA、0～5VDC、1～5VDC、0～10VDC optional |
| Power Supply | 12～36VDC |
| Overload Capacity | 150%F.S |
| Compensated Temperature | -10-70℃ |
| Operating Temperature | 0℃~100℃ (Customized) |
| Zero Temp.Drift | ±0.03%FS/℃ |
| Sensitivity Temp.Drift | ±0.03%FS/℃ |
| Long Term Stability | ≤0.2%FS/year |
| Response Speed | ≤1ms(up to 90%FS) |
| Process Connection | Tri-Clamp or Customized |
| Ingress Protection | IP65 |
|
CAP -2088WS-ð-ð-ð-ð-ð-ð-ð-ð |
Code | ||||||||
|
Range |
-0.1...0...6MPa |
R | |||||||
|
Customized |
E | ||||||||
|
Type |
Gauge (G) |
G | |||||||
|
Absolute (A) |
A | ||||||||
|
Sealed Gauge (S) |
S | ||||||||
|
Output |
4~20mA |
V1 | |||||||
|
0~5V DC |
V2 | ||||||||
|
1-5V DC |
V3 | ||||||||
|
Hart, RS485,RS232（optional） |
V4 | ||||||||
|
Connection |
Tri-clamp |
B1 | |||||||
|
Customized |
B2 | ||||||||
|
Accuracy |
0.5%FS |
C1 | |||||||
|
0.25%FS |
C2 | ||||||||
|
0.1%FS |
C3 | ||||||||
|
Display |
No display |
D1 | |||||||
|
LCD display |
D2 | ||||||||
|
LED display |
D3 | ||||||||
|
Material |
304SS |
M1 | |||||||
|
306LSS |
M2 | ||||||||
|
Ex-proof |
No explosion-proof |
0 | |||||||
|
Ex | |||||||||
