| Measure medium: | Liquid, Gas and Steam |
| Measure range: | 0~0.12KPa to 0~40MPa |
| Output signal: | 4-20mADC |
| Power supply: | 12-45VDC,default as 24VDC |
| Accuracy: | ±0.25%,±0.5% |
| Static pressure and over load pressure: | 4,10,25,32MPa |
| Humidity: | relative humidity 0~100% |
| Starting time: | 2S without preheat |
| Volume absorb value: | <0.16cm3 |
| Indicator: | Pointer type linear indication 0-100% scale or 3½ bit LCD digital display(0-100% linear) |
| Explosion proof: | A:Exd II CT6 IP65 Grade |
| B: Intrinsic safety ia II CT6 |
|

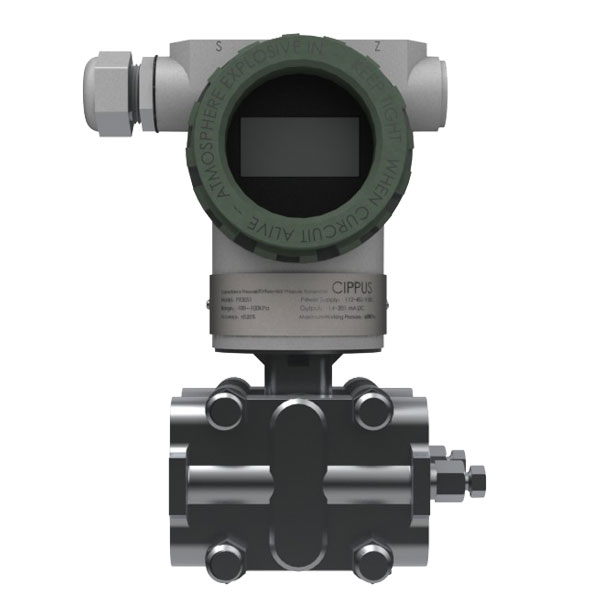

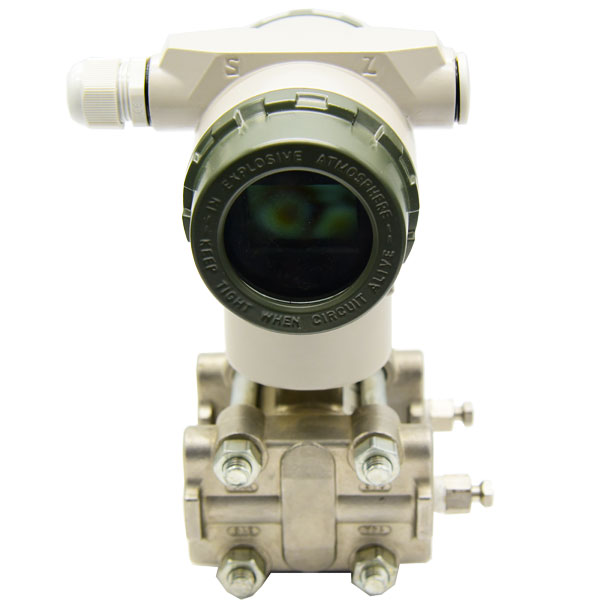

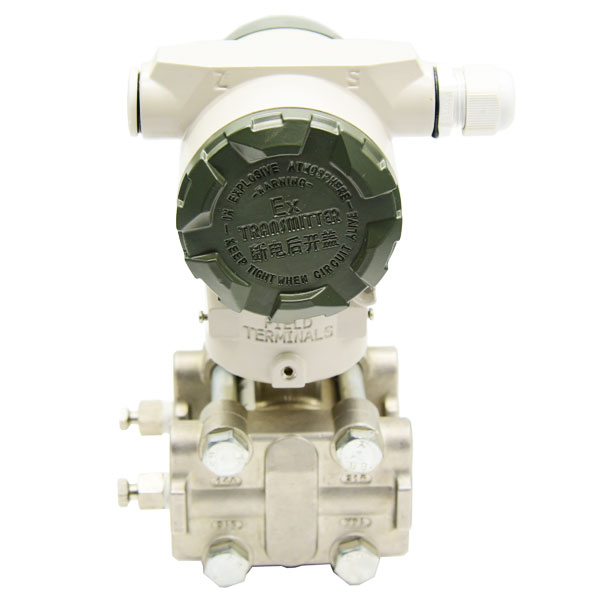

PX3051 |
DifferentialPressure Transmitter | ||||||||||||
|
Code |
Measure range | ||||||||||||
|
3 |
0-1.24~7.46KPa | ||||||||||||
|
4 |
0-6.2~37.29KPa | ||||||||||||
|
5 |
0-31.08~186.45KPa | ||||||||||||
|
6 |
0-117~689.48KPa | ||||||||||||
|
7 |
0-0.34~2.07MPa | ||||||||||||
|
8 |
0-1.6~10MPa | ||||||||||||
|
Code |
Output | ||||||||||||
|
E |
4-20mA | ||||||||||||
|
S |
4-20Ma+Hart | ||||||||||||
|
Code |
Structure& Material | ||||||||||||
|
Flange connector |
Vent/Drain valve |
Isolation diaphragm |
Filling liquid | ||||||||||
|
22 |
SS316 |
SS316 |
SS316 |
Silicone oil | |||||||||
|
23 |
SS316 |
SS316 |
Hasstelloy C |
Silicone oil | |||||||||
|
24 |
SS316 |
SS316 |
Monel |
Silicone oil | |||||||||
|
33 |
Hasstelloy C |
Hasstelloy C |
Hasstelloy C |
Silicone oil | |||||||||
|
35 |
Hasstelloy C |
Hasstelloy C |
Tantalum |
Silicone oil | |||||||||
|
44 |
Monel |
Monel |
Monel |
Silicone oil | |||||||||
|
Code |
Max. Working Pressure MPa | ||||||||||||
|
B |
4 | ||||||||||||
|
C |
10 | ||||||||||||
|
Code |
Display | ||||||||||||
|
M |
0-100 Pointer indication | ||||||||||||
|
M2 |
3½ bit LCD digital display | ||||||||||||
|
Code |
Installation | ||||||||||||
|
B1 |
Pipe curving bracket installation | ||||||||||||
|
B2 |
Panel curving bracket installation | ||||||||||||
|
B3 |
Pipe flat bracket installation | ||||||||||||
|
Code |
Release valve | ||||||||||||
|
D1 |
Side release valve above pressure chamber | ||||||||||||
|
D2 |
Side release valve below pressure chamber | ||||||||||||
|
Code |
Process connection | ||||||||||||
|
C1 |
NPT1/2 | ||||||||||||
|
C2 |
NPT1/4 | ||||||||||||
|
Code |
Explosion proof | ||||||||||||
|
d |
DIIBT4 (GB) | ||||||||||||
|
i |
IaIICT6(GB) | ||||||||||||
