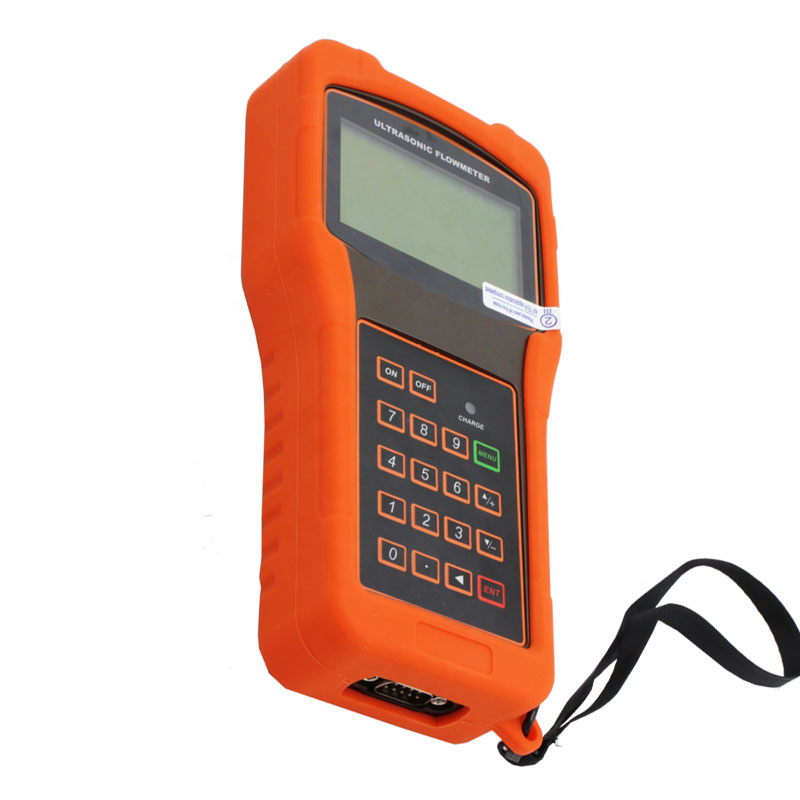

CUF2000-H Handheld Portable Ultrasonic Flow Meter | ||
|
Convertor |
Principle |
Transit-time measurement principle |
|
Accuracy |
±1% | |
|
Display |
4*16 character LCD display with backlight Language: support Chinese, English, Italy, Turkish etc. | |
|
Signal Output |
1 way OCT pulse output (Pulse width 6~1000ms, default is 200ms) | |
|
Data Interface |

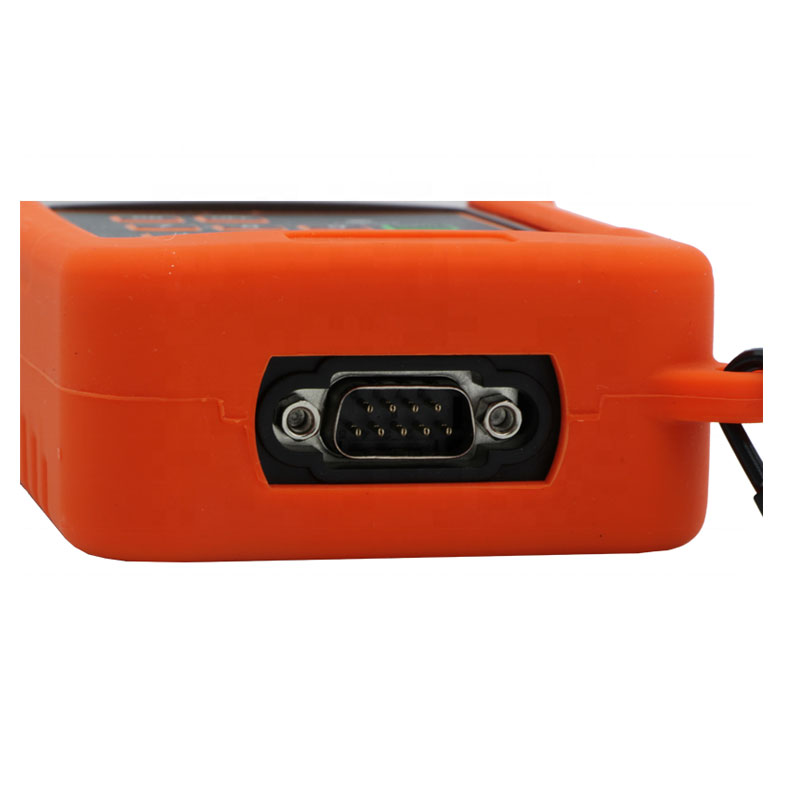

Insulate RS232 serial interface, upgrade the flowmeter software by computer | |
|
Measuring Medium |
Liquid Type |
Single liquid can transmit sound wave, such as water (hot water, chilled water, city water, sea water, waste water, etc.) Sewage with small particle content: oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.) Chemicals (alcohol etc.) Plant effluent; beverage, Ultra-pure liquids, etc. |
|
Temperature |
-30-160℃ | |
|
Turbidity |
No more than 10000ppm and less bubble | |
|
Flowrate |
0~±10m/s | |
|
Pipe Installation Condition |
Pipe Material |
Steel, Stainless steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel etc. tight pipe and liner is allowed |
|
Pipe Diameter |
DN32~6000mm | |
|
Straight Pipe |
Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump | |
|
Working Environment |
Temperature |
Convertor:~20-60℃; Flow Transducer:~30-160 ℃ |
|
Humidity |
Convertor:85% RH; Flow Transducer:IP67 | |
|
Power Supply |
3AAA built-in Ni-MH batteries 1.2V (for over 12 hours of operation). 90V~260NAC adapter | |
|
Power Consumption |
1W | |
|
Housing Material |
Inflaming Retarding ABS | |
|
Dimension |
200*93*32mm (convertor) | |
