Item

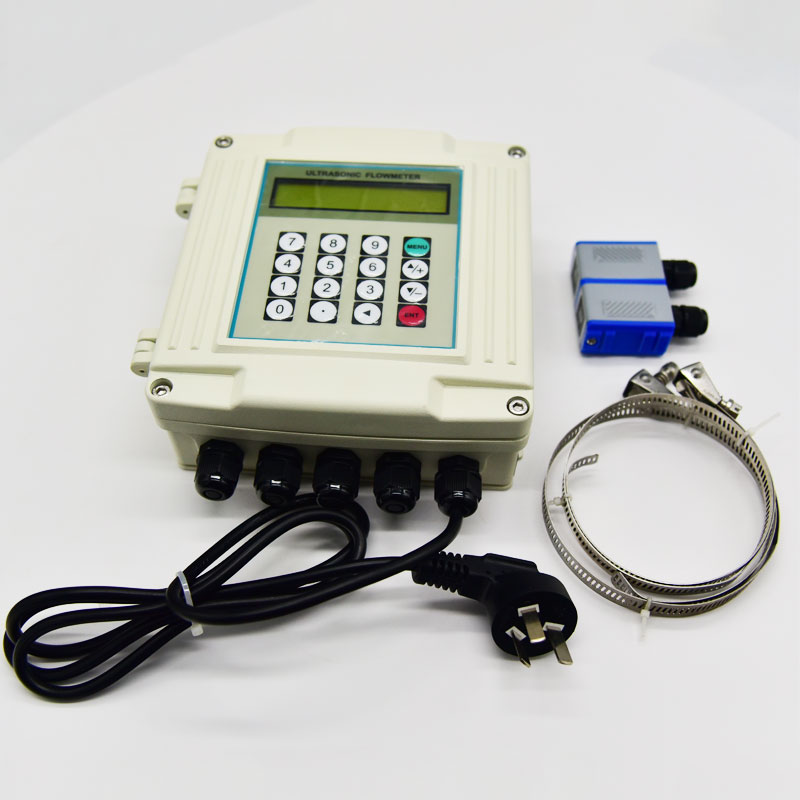

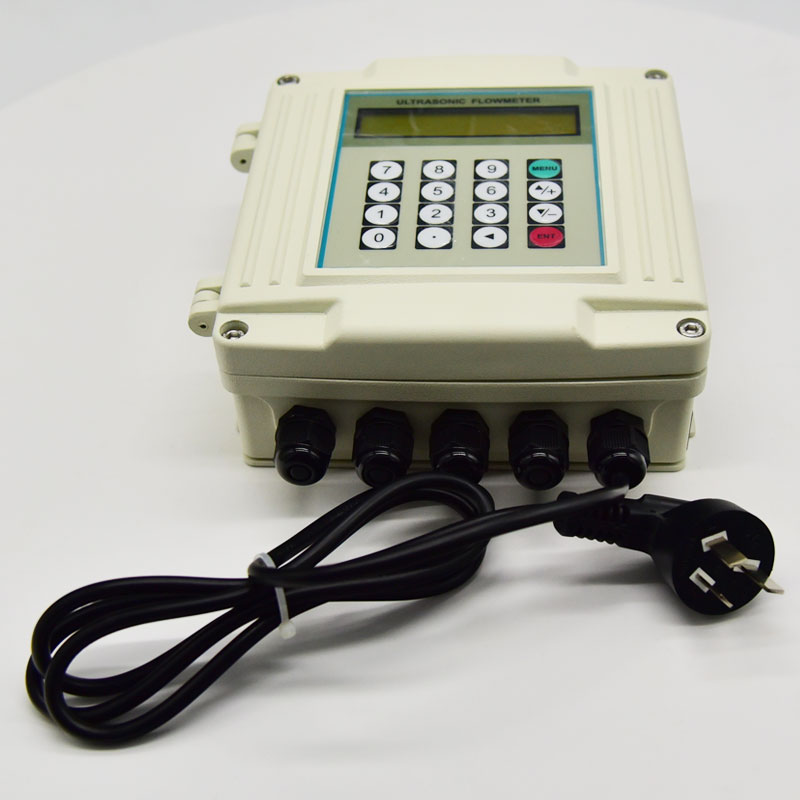

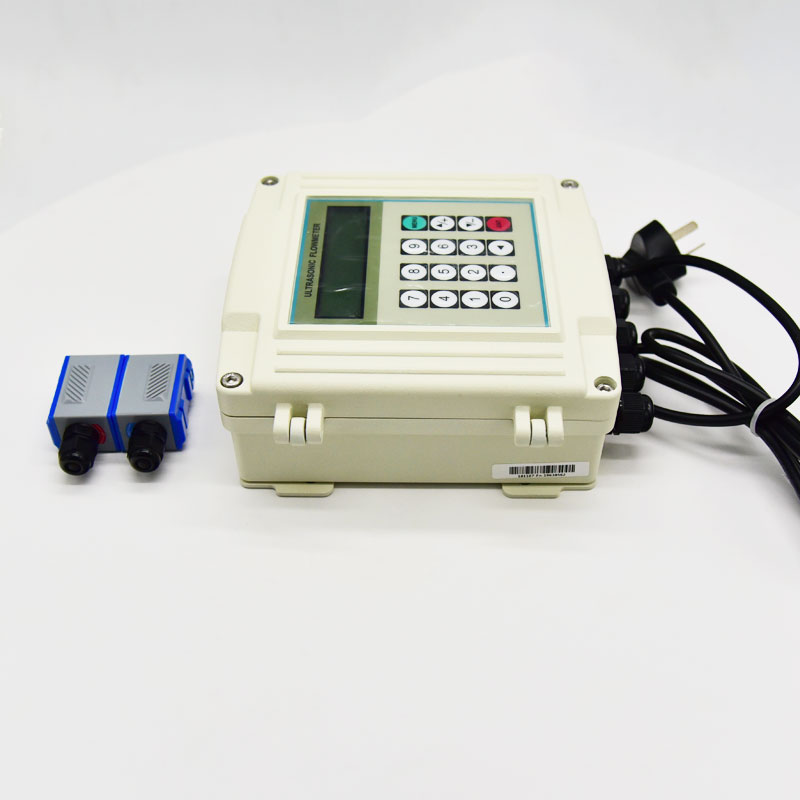

 CUF2000-W Wall Mounted Ultrasonic Flow Meter

 Convertor

 Principle

 Transit-time measurement principle

 Accuracy

 ±1%

 Display

 2*20 character LCD display with backlight

 Language:Support Chinese, English, Italy, Turkish etc.

 Signal Input

 3 way 4-20mA input, accuracy 0.1%, acquisition signal such as   temperature, press and liquid level.

 Connect the temperature transducer Pt100, can finish the

 heat/energy   measurement

 Signal Output

 1 way 4~20mA output, electric resistance 0~1K, accuracy0.1%

 1 way OCT pulse output (Pulse width~1000ms, default is 200ms)

 1 way replay output

 Data Interface

 Insulate RS485 serial interface, upgrade the flowmeter software   by   computer, support the MODBUS

 Medium

 Type of Liquid

 Single liquid that can conduct sound wave,such as water(hot   water,   chilled water, city water, sea water, waste water etc.

 Sewage with small particle content:oil (crude oil, lubricating oil,   diesel oil,   fuel oil, ultra-pure liquids, etc.)

 Temperature

 -30℃~160℃

 Turbidity

 No more than 10000ppm and less bubble

 Flowrate

 0~±7m/s

 Working   Environment

 Temperature

 Convertor:~20-60℃; Flow Transducer:~30-160 ℃

 Humidity

 Convertor:85% RH;

 Flow Transducer: can measure under water, water depth≤2m   (transducer   sealed glue)

 Pipe Material

 Steel, Stainless Steel, cast iron, copper, PVC , Aluminum etc.

 Pipe Diameter

 DN32-DN6000mm

 Power Supply

 DC8-36V; AC85-264V;(optional)

 PowerConsumption

 1.5W

 Velocity

 -12m/s~12m/s

 Protection Class

 Main Unit: IP67; Sensor:IP68
