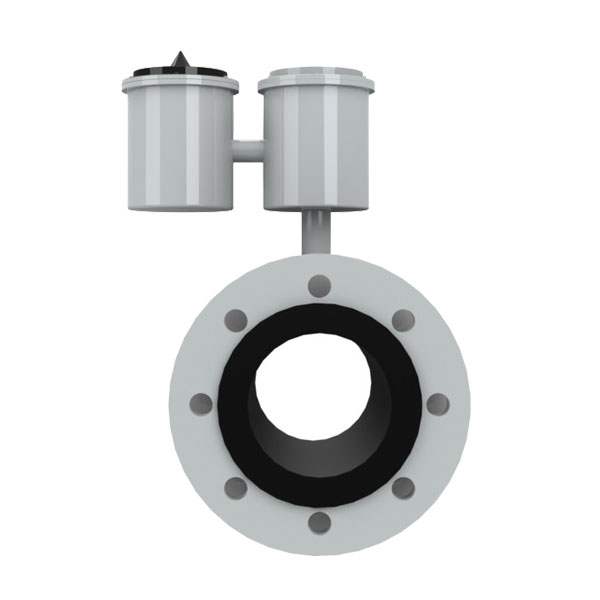

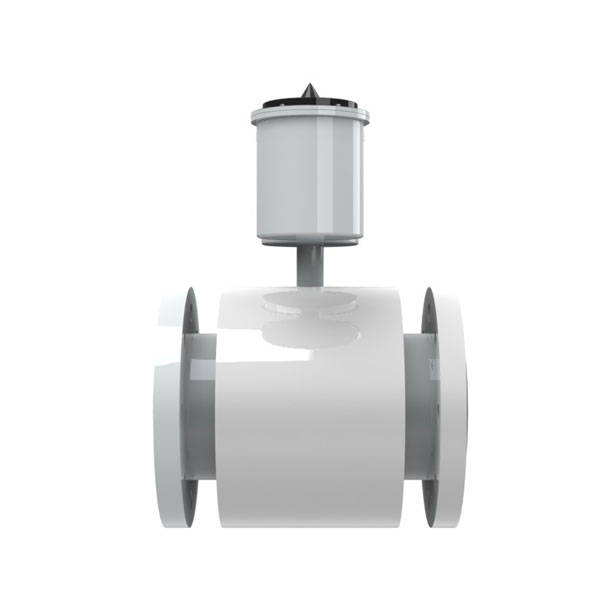

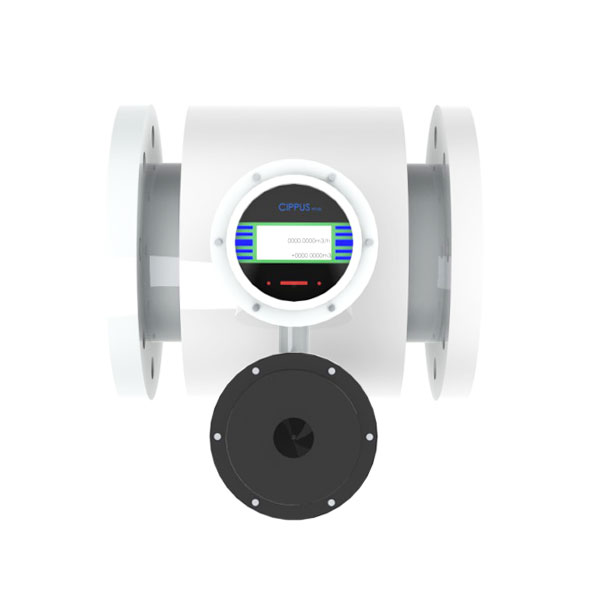

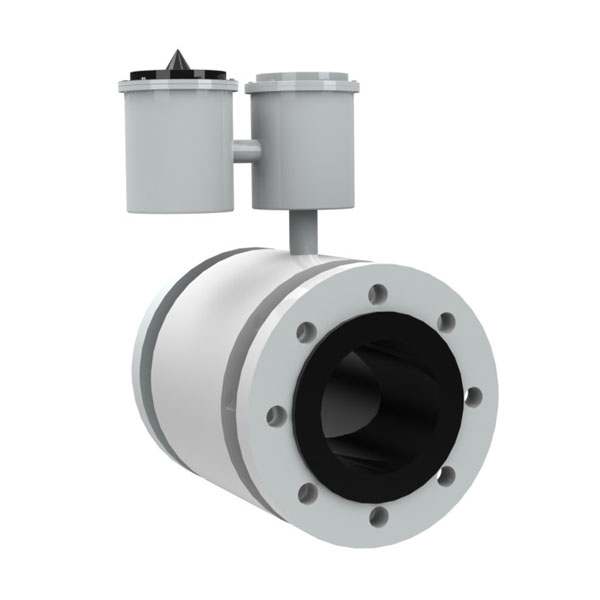

| Dimension | DN6~DN3000mm | |
| Nominal Pressure | 0.6~1.6MPa(2.5Mpa/4.0Mpa/6.4Mpa...42Mpa) | |
| Accuracy | ±0.5%,±0.3%or±0.2% are selectable | |
| Liner Material | Teflon,PFA,F46,Neoprene,Polyurethane | |
| Electrode Type | General Type ,Scraper Type and Replaceable Type | |
| Electrode Material | Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinumiridium, Stainless steel covered with tungsten carbide | |
| Mediem Temperature | Remote Type | Neoprene & Polyurethane Liner -10°C~+80°C |
| PTFE Liner /PFA Liner /F46 Liner -10°C~+160°C | ||
| Integrate Type | -20°C~+60°C | |
| Ambient Temperature | -25°C ~+ 60°C | |
| Ambient Humidity | 5~100%RH(relative humidity) | |
| Medium Electrical Conductivity |
>=5u s/cm | |
| Measuring Range | 1500:1,flow rate<15m/s | |
| Structure Type | Integral type,remote type,submersible type,ex-proof type | |
| Protection Class | IP65,IP68(optional) | |
| Ex-proof Mark | ExmdⅡT6 | |
| Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | |
Order Guide
The flowmeter model selection is very important in application of instrument. The following special attention should be paid.
a. The measured fluid name and its chemical substances
b. Maximum and minimum flux and normal flux
c. Maximum working pressure;
d. Maximum temperature, minimum temperature.
e. Eelectrical Conductivity ≥5μS/
|
Inner Diameter |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
|
Qmin(m3/h) |
0.0848 |
0.1908 |
0.3391 |
0.5299 |
0.8681 |
1.3565 |
2.1195 |
3.5820 |
|
Qmax(m3/h) |
3.39 |
7.63 |
13.56 |
21.20 |
34.73 |
54.26 |
84.78 |
143.28 |
|
Inner Diameter |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
Qmin(m3/h) |
5.4259 |
8.478 |
13.2469 |
19.0755 |
33.912 |
52.9875 |
76.302 |
103.8555 |
|
Qmax(m3/h) |
217.04 |
339.12 |
529.88 |
763.02 |
1356.48 |
2119.5 |
3052.08 |
4154.22 |
|
Inner Diameter |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
|
Qmin(m3/h |
135.648 |
171.6795 |
211.95 |
305.208 |
415.422 |
542.592 |
686.718 |
847.80 |
|
Qmax(m3/h) |
5425.95 |
6867.18 |
8478 |
12208.22 |
16616.88 |
21703.68 |
27468.82 |
33912 |
|
Inner Diameter |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
2600 |
|
Qmin(m3/h |
1220.832 |
1661.688 |
2170.368 |
2746.872 |
3391.20 |
4103.352 |
4883.32 |
5731.12 |
|
Qmax(m3/h) |
48833.28 |
66467.52 |
86814.72 |
109874.88 |
135648 |
164134.08 |
195333.12 |
229245.12 |
Selection Guide Model PF100 Nominal Diameter DN15~DN3000 Structure Type F Remote type Y Compact type C Insertion type Nominal Pressure(MPa) 16 PN16 XX Customized Liner Material R Chloroprene Rubber(Max.80℃),FLS(Max.250℃) F PTFE,F46,PFA P Polyurethane rubber C Aluminum oxide ceramics Electrode Material 1 SS316L 2 Tantalum 3 Titanium 4 Hastelloy B 5 Hastelloy C 6 Platinum-Iridium Alloy 7 Stainless steel coated with Tungsten carbide Housing Material A Stainless Steel B Carbon Steel Protection Grade L IP65 M IP67 H IP68 Power Supply 1 2 11-40VDC 3 Lithium battery Output Signal A 4-20mA,Pulse H HART R RS232/485 G GPRS
