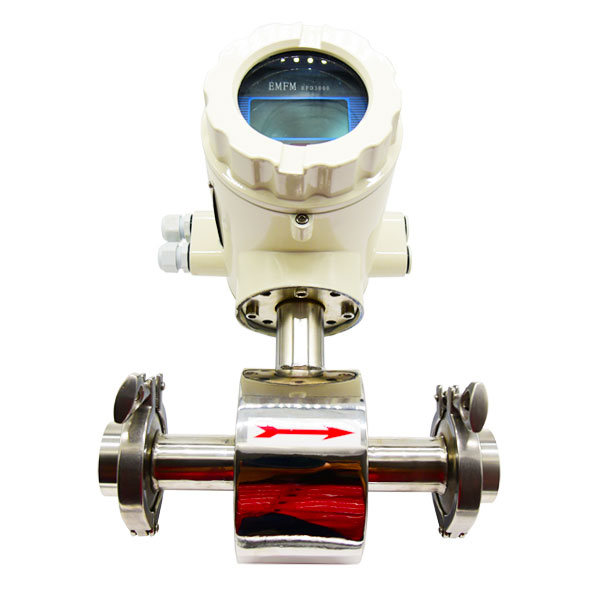

Specification
| Dimension | DN6~DN3000mm | |
| Nominal Pressure | 0.6~1.6MPa(2.5Mpa/4.0Mpa/6.4Mpa...42Mpa) | |
| Accuracy | ±0.5%,±0.3%or±0.2% are selectable | |
| Liner Material | Teflon,PFA,F46,Neoprene,Polyurethane | |
| Electrode Type | General Type ,Scraper Type and Replaceable Type | |
| Electrode Material | Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinumiridium, Stainless steel covered with tungsten carbide | |
| Mediem Temperature | Remote Type | Neoprene & Polyurethane Liner -10°C~+80°C |
| PTFE Liner /PFA Liner /F46 Liner -10°C~+160°C | ||
| Integrate Type | -20°C~+60°C | |
| Ambient Temperature | -25°C ~+ 60°C | |
| Ambient Humidity | 5~100%RH(relative humidity) | |
| Medium Electrical Conductivity |
>=5u s/cm | |
| Measuring Range | 1500:1,flow rate<15m/s | |
| Structure Type | Integral type,remote type,submersible type,ex-proof type | |
| Protection Class | IP65,IP68(optional) | |
| Ex-proof Mark | ExmdⅡT6 | |
| Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | |
|
Inner Diameter |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
|
Qmin(m3/h) |
0.0848 |
0.1908 |
0.3391 |
0.5299 |
0.8681 |
1.3565 |
2.1195 |
3.5820 |
|
Qmax(m3/h) |
3.39 |
7.63 |
13.56 |
21.20 |
34.73 |
54.26 |
84.78 |
143.28 |
|
Inner Diameter |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
Qmin(m3/h) |
5.4259 |
8.478 |
13.2469 |
19.0755 |
33.912 |
52.9875 |
76.302 |
103.8555 |
|
Qmax(m3/h) |
217.04 |
339.12 |
529.88 |
763.02 |
1356.48 |
2119.5 |
3052.08 |
4154.22 |
|
Inner Diameter |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
|
Qmin(m3/h |
135.648 |
171.6795 |
211.95 |
305.208 |
415.422 |
542.592 |
686.718 |
847.80 |
|
Qmax(m3/h) |
5425.95 |
6867.18 |
8478 |
12208.22 |
16616.88 |
21703.68 |
27468.82 |
33912 |
|
Inner Diameter |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
2600 |
|
Qmin(m3/h |
1220.832 |
1661.688 |
2170.368 |
2746.872 |
3391.20 |
4103.352 |
4883.32 |
5731.12 |
|
Qmax(m3/h) |
48833.28 |
66467.52 |
86814.72 |
109874.88 |
135648 |
164134.08 |
195333.12 |
229245.12 |
Selection Guide Model PF100 Nominal Diameter DN15~DN3000 Structure Type F Remote type Y Compact type C Insertion type Nominal Pressure(MPa) 16 PN16 XX Customized Liner Material R Chloroprene Rubber(Max.80℃),FLS(Max.250℃) F PTFE,F46,PFA P Polyurethane rubber C Aluminum oxide ceramics Electrode Material 1 SS316L 2 Tantalum 3 Titanium 4 Hastelloy B 5 Hastelloy C 6 Platinum-Iridium Alloy 7 Stainless steel coated with Tungsten carbide Housing Material A Stainless Steel B Carbon Steel Protection Grade L IP65 M IP67 H IP68 Power Supply 1 2 11-40VDC 3 Lithium battery Output Signal A 4-20mA,Pulse H HART R RS232/485 G GPRS
