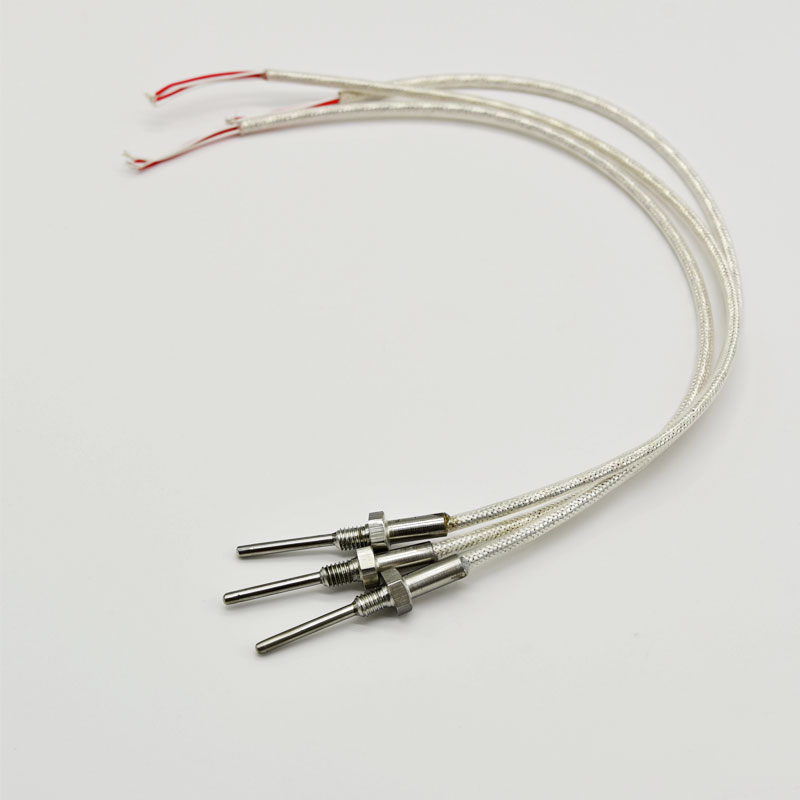

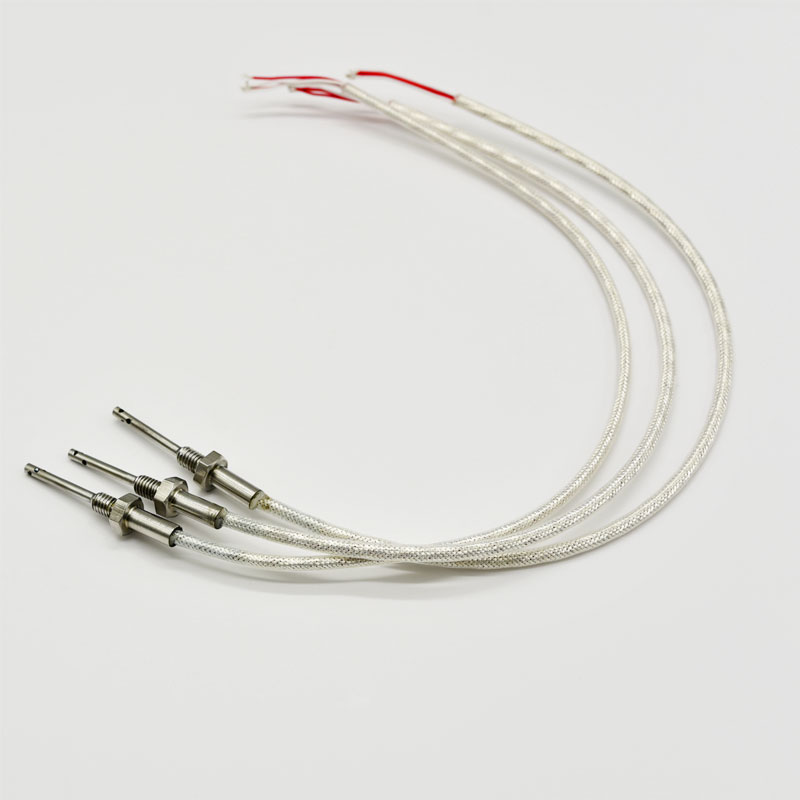

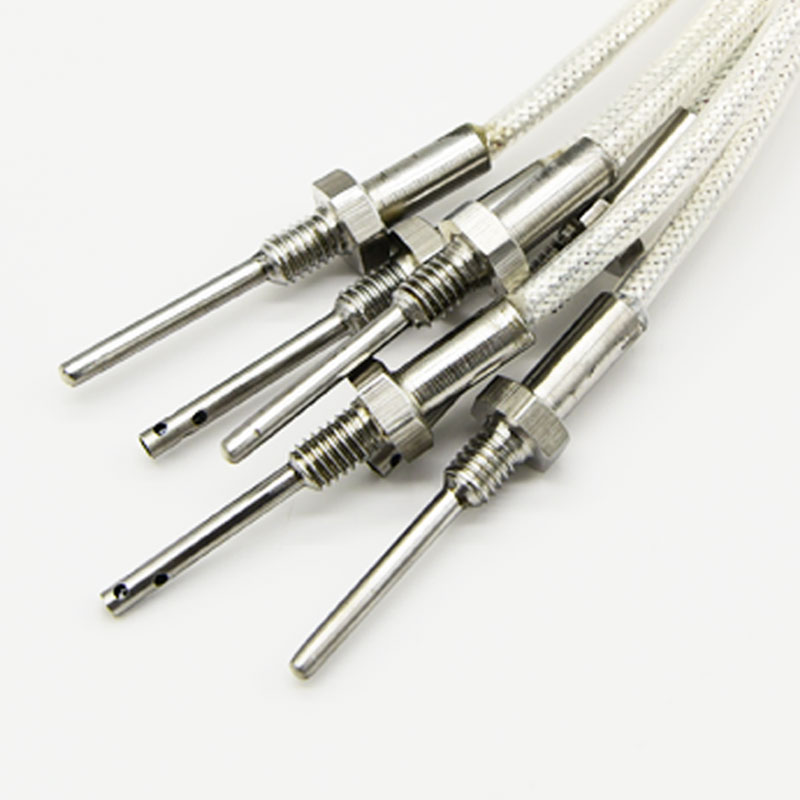

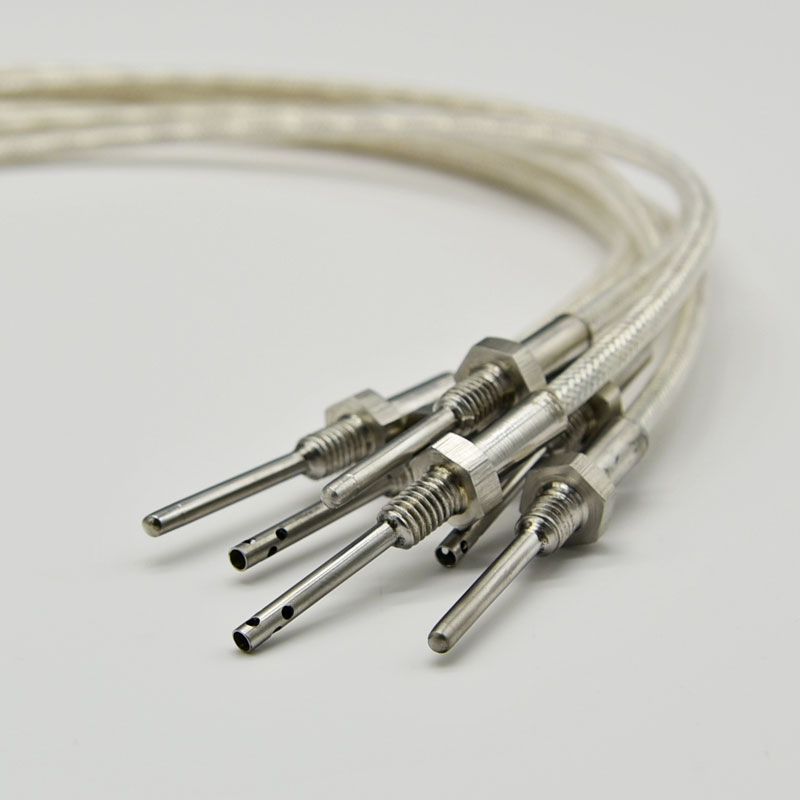

RTD is the most widely used temperature sensor, it already apply to Chemical, Metallurgy, Power, Mechanical, Construction material industry, etc.
| Type | PT100 |
| Temperature Range | -200~600℃ |
| Wiring System | 2 wire,3 wire or 4 wire |
| Accuracy | ClassAA,Class A or Class B |
| Diameter | φ0.25, φ0.5, φ1.0, φ2.0, φ3.0, φ4.0, φ5.0, φ6.0, φ7.0, φ8.0. Need bigger diameter, thermowell should be added |
| Material | 304,316,316L,GH3030,GH3039,Inconel600 |
| Lead Wires | 24 AWG Wire,FEP Insulated,Color coded per IEC 60584 or ASTM E230 |
| Junction Box | Cast aluminium stainless steel,Stainless steel junction box,Plastic junction box |
| Insulation Resistance | 1000MΩMinimum insulation resistance when measured at 500VDC at room temperature |
