Pressure Range

-0.1～0-0.02～100MPa

Medium

Water, Gas, Oil Purity Medium

Accuracy

0.1、0.25、0.5% F.S optional

Pressure Type

Gauge (G), Absolute (A), Sealed Gauge (S)

Output

4～20mA、0～5VDC、1～5VDC、0～10VDC、HART optional

Power Supply

12～36VDC

Overload Capacity

150%F.S

Compensated Temperature

-10-70℃

Operating Temperature

-20-65℃ (higher temperature can chose CAP-GW)

Zero Temp. Drift

±0.03%FS/℃

Sensitivity Temp. Drift

±0.03%FS/℃

Long Term Stability

≤0.2%FS/year

Response Speed

≤1ms(up to 90%FS)

Process Connection

M20×1.5, 1/4NPT, G1/2, G1/4 or Customized

Ingress Protection

IP65

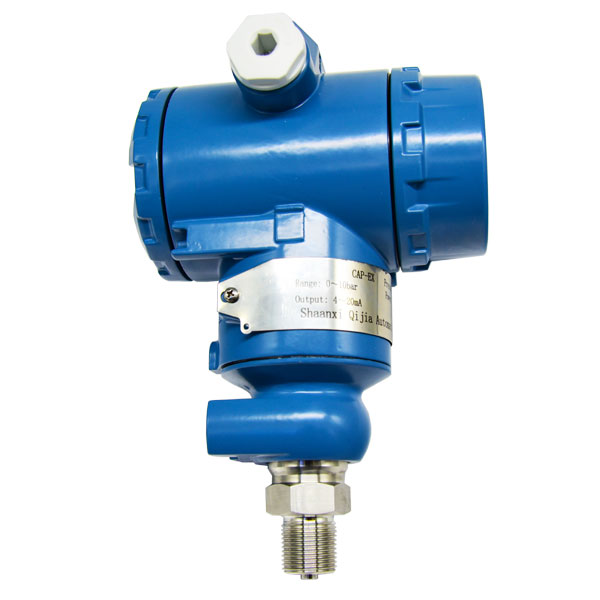

CAP -EX-ð-ð-ð-ð-ð-ð-ð-ð

Code

Range

-0.1～0-0.02～100MPa

R

Type

Gauge (G)

G

Absolute (A)

A

Sealed gauge (S)

S

Output

4~20mA

V1

0~5V DC

V2

1~5V DC

V3

Hart, RS485,RS232（optional）

V4

Connection

M20×1.5

B1

1/4NPT

B2

G1/2

B3

G1/4

B4

Customized

B5

Accuracy

0.5%FS

C1

0.25%FS

C2

0.1%FS

C3

Material

304SS

M1

316LSS

M2

Ex-proof

No explosion-proof

0

Explosion-proof

Ex
